125mm GDH Series Polyurethane (550Kg)

From £36.44
( £43.73 Including VAT at 20% )

Ref:

125GDH-PTBJ

Castor Type:

Quantity:

Add to Cart

You may also be interested in:

DL-GDH SERIES DIRECTIONAL LOCK£21.46

M12 X 30mm Bolt, Nylock & Washer (SET of 4)£2.40

M12 X 30mm Bolt, Nylock & Washer (SET of 16)£9.60

Fitting Plate 105X80 Bolt Center£5.76 x 0

Fitting Plate 105x80mm Bolt Centre SET OF 4£22.20 x 0

Description

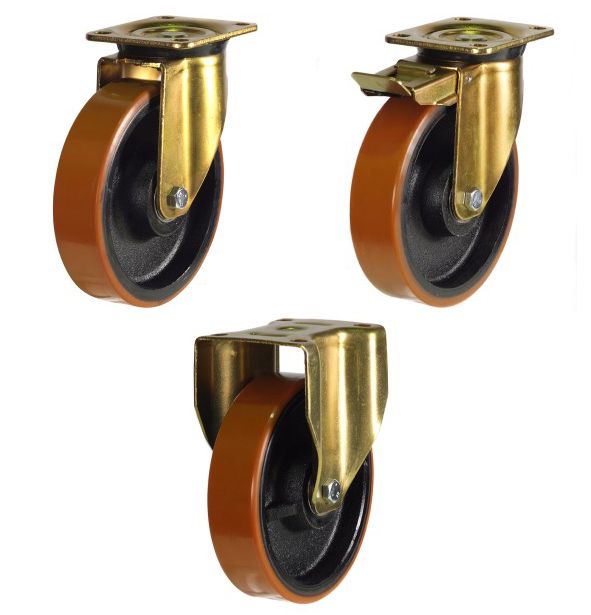

125mm Extra Heavy Duty PRESSED STEEL Swivel, Fixed & Swivel/Braked Castors Polyurethane / Cast Iron Wheel 550Kg Load

Ideal For Heavy Dynamic Loads and Towing applications or instances where shock loading is an issue

125 mm Swivel Castor with 4 bolt fixing plate
Extra Heavy duty Pressed Steel bracket with Swivel ball bearings.
Extra Heavy duty Polyurethane tyred wheel on cast iron center with ball bearings.

Overall Height : 166mm
Wheel Size : 125mm
Tread Width : 50mm
Wheel Type : Polyurethane Tyre/Cast Iron Centred Wheel with Ball Bearings
Load Rating : 550kg
Fixing Plate Size : 135 x 110mm
Bolting Centre : 105 x 80mm
Bolt Size : 12mm (M12)
Swivel Radius : 121mm (SWIVEL CASTOR)
Swivel Radius : 156mm (BRAKED CASTOR)
