150mm NGR Series Nylon 1000Kg
From £35.52
( £42.62 Including VAT at 20% )
Ref: ( £42.62 Including VAT at 20% )
150NGR-NYBJ
Castor Type:
Add to Cart
Description

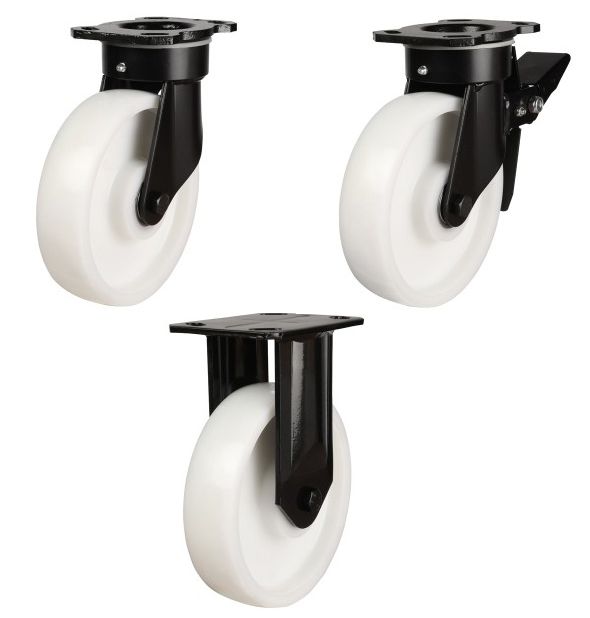

150mm Extra Heavy Duty Swivel, Fixed & Total Stop Swivel/Braked Castors with Cast Nylon Wheel Ball Bearing Bore.
150 mm Swivel Castor with 4 bolt fixing plate
Extra Heavy duty fabricated bracket with ball bearing swivel head and Total Stop Brake.
Extra Heavy duty Cast Nylon Wheel with ball bearings.
The bracket is finished black powder coat.
Overall Height : 202mm
Wheel Size : 150mm
Tread Width : 45mm
Wheel Type : Cast Nylon Wheel with Ball Bearings
Load Rating : 1000kg
Fixing Plate Size : 149 x 110mm - Swivel & Brake
Fixing Plate Size : 152 x 115mm - Fixed
Bolting Centres : 105 x 80mm
Bolt Size : 12mm (M12)
Swivel Radius : 128mm (SWIVEL CASTOR)
Swivel Radius : 170mm (BRAKED CASTOR)
150 mm Swivel Castor with 4 bolt fixing plate
Extra Heavy duty fabricated bracket with ball bearing swivel head and Total Stop Brake.
Extra Heavy duty Cast Nylon Wheel with ball bearings.
The bracket is finished black powder coat.
Overall Height : 202mm
Wheel Size : 150mm
Tread Width : 45mm
Wheel Type : Cast Nylon Wheel with Ball Bearings
Load Rating : 1000kg
Fixing Plate Size : 149 x 110mm - Swivel & Brake
Fixing Plate Size : 152 x 115mm - Fixed
Bolting Centres : 105 x 80mm
Bolt Size : 12mm (M12)
Swivel Radius : 128mm (SWIVEL CASTOR)
Swivel Radius : 170mm (BRAKED CASTOR)
