150mm NGR Series Polyurethane 800Kg

From £45.71
( £54.85 Including VAT at 20% )

Ref:

150NGR-PTBJ

Castor Type:

Quantity:

Add to Cart

You may also be interested in:

M12 X 30mm Bolt, Nylock & Washer (SET of 4)£2.40

M12 X 30mm Bolt, Nylock & Washer (SET of 16)£9.60

Fitting Plate 105X80 Bolt Center£5.76

150mm Polyurethane Tyre on Cast Iron Centre Wheel 20mm & 25mm Bore£41.38 x 0

DL-NGR SERIES DIRECTIONAL LOCK£25.09 x 0

Description

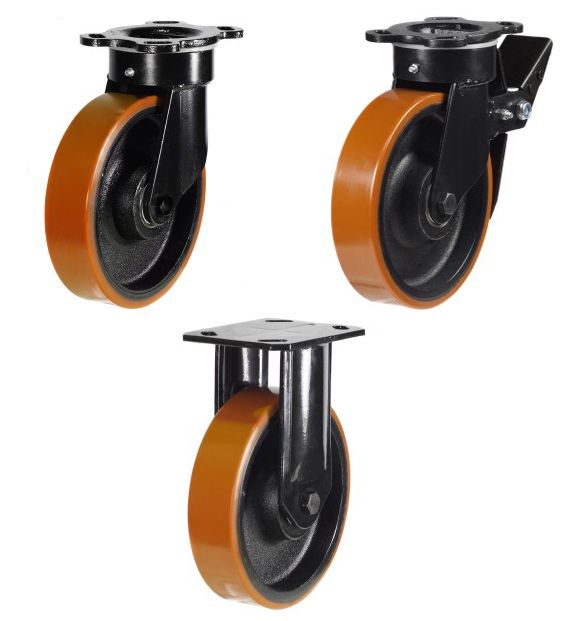

150mm Extra Heavy Duty Swivel, Fixed & Total Stop Swivel/Braked Castors with Polyurethane / Cast Iron Wheel

150 mm Swivel Castor with 4 bolt fixing plate
Extra Heavy duty fabricated bracket with ball bearing swivel head.
Extra Heavy duty Polyurethane tired wheel on cast iron centre with ball bearings.
The bracket is finished black powder coat.

Overall Height : 202mm
Wheel Size : 150mm
Tread Width : 50mm
Wheel Type : Polyurethane Tyre Wheel/Cast Iron Centre with Ball Bearing Bore
Load Rating : 800kg
Fixing Plate Size : 149 x 110mm - Swivel & Brake
Fixing Plate Size : 152 x 115mm - Fixed
Bolting Centres : 105 x 80mm
Bolt Size : 12mm (M12)
Swivel Radius : 128mm (SWIVEL CASTOR)
Swivel Radius : 170mm (BRAKED CASTOR)
