150mm GDH Series Polyurethane/Cast Iron (800Kg)
From £46.60
( £55.92 Including VAT at 20% )
Ref: ( £55.92 Including VAT at 20% )
150GDH-PTBJ
Castor Type:
Add to Cart
Description

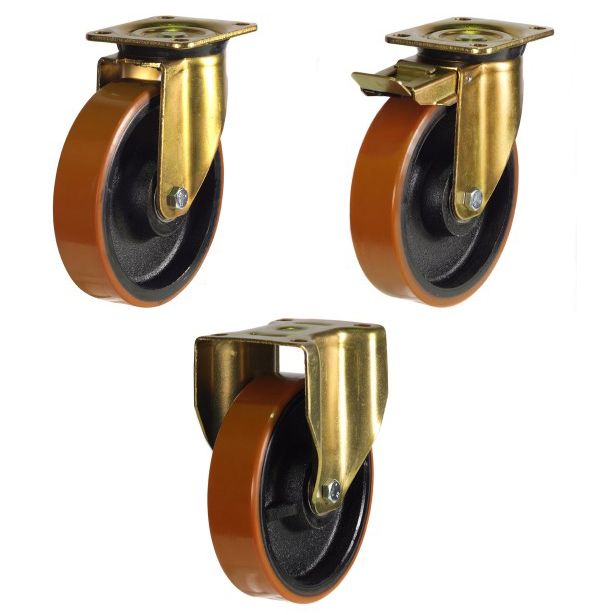

150mm Extra Heavy PRESSED STEEL Swivel, Fixed & Total Stop Swivel/Brake Polyurethane / Cast Iron Wheel 800Kg
Ideal For Heavy Dynamic Loads and Towing applications or instances where shock loading is an issue
Extra Heavy duty Polyurethane tyred wheel on cast iron centre with ball bearings.
The bracket is finished in Passivated Zinc and is corrosion resistant
Overall Height : 194mm
Wheel Size : 150mm
Tread Width : 50mm
Wheel Type : Polyurethane Tyre/Cast Iron Centre Wheel with Ball Bearing Bore
Load Rating : 800kg
Fixing Plate Size : 135 x 110mm
Bolting Centre : 105 x 80mm
Bolt Size : 12mm (M12)
Swivel Radius : 130mm (Swivel)
Swivel Radius : 155mm (Brake)
Ideal For Heavy Dynamic Loads and Towing applications or instances where shock loading is an issue
Extra Heavy duty Polyurethane tyred wheel on cast iron centre with ball bearings.
The bracket is finished in Passivated Zinc and is corrosion resistant
Overall Height : 194mm
Wheel Size : 150mm
Tread Width : 50mm
Wheel Type : Polyurethane Tyre/Cast Iron Centre Wheel with Ball Bearing Bore
Load Rating : 800kg
Fixing Plate Size : 135 x 110mm
Bolting Centre : 105 x 80mm
Bolt Size : 12mm (M12)
Swivel Radius : 130mm (Swivel)
Swivel Radius : 155mm (Brake)
