200mm NGR Series Polyurethane 1000Kg

From £55.50
( £66.60 Including VAT at 20% )

Ref:

200NGR-PTBJ

Castor Type:

Quantity:

Add to Cart

You may also be interested in:

M12 X 30mm Bolt, Nylock & Washer (SET of 4)£2.40

M12 X 30mm Bolt, Nylock & Washer (SET of 16)£9.60

Fitting Plate 105X80 Bolt Center£5.76

200mm Polyurethane Tyre on Cast Iron Centre Wheel 20mm & 25mm Bore£45.98 x 0

DL-NGR SERIES DIRECTIONAL LOCK£25.09 x 0

Description

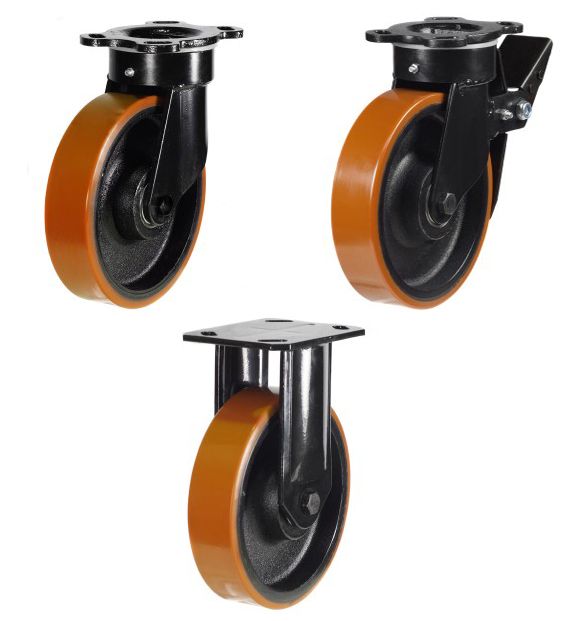

200mm Extra Heavy Duty Swivel, Fixed & Total Stop Swivel/Braked Castors with Polyurethane / Cast Iron Centre Wheel Ball Bearing Bore.

200 mm Swivel, Fixed & Total Stop Braked Castor with 4 bolt fixing plate
Extra Heavy duty fabricated bracket with ball bearing swivel head.
Extra Heavy duty Polyurethane tired wheel on cast iron centre with ball bearings.
The bracket is finished black powder coat.

Overall Height : 252mm
Wheel Size : 200mm
Tread Width : 50mm
Wheel Type : Biscuit Polyurethane Wheel with Ball Bearings
Load Rating : 1000kg
Fixing Plate Size : 149 x 110mm - Swivel & Brake
Fixing Plate Size : 152 x 115mm - Fixed
Bolting Centres : 105 x 80mm
Bolt Size : 12mm (M12)
Swivel Radius : 157mm (SWIVEL CASTOR)
Swivel Radius : 179mm (BRAKED CASTOR)
