200mm GDH Series Polyurethane/Cast Iron (800Kg)
From £52.06
( £62.47 Including VAT at 20% )
Ref: ( £62.47 Including VAT at 20% )
200GDH-PTBJ
Castor Type:
Add to Cart
Description

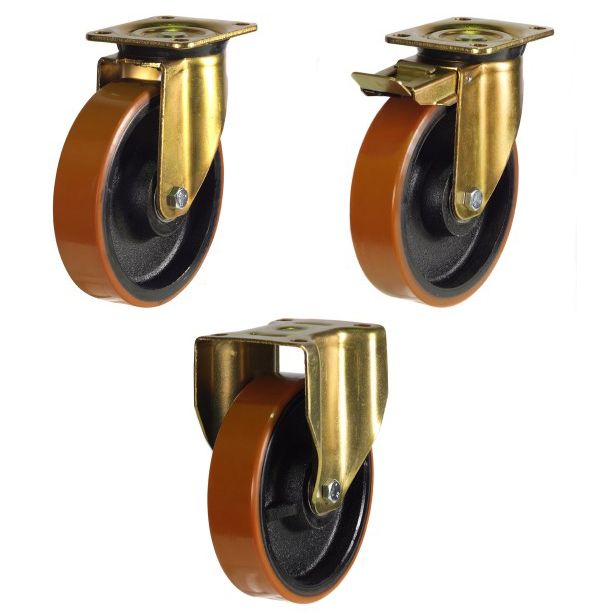

200mm Extra Heavy PRESSED STEEL Swivel, Fixed & Total Stop Swivel/Brake Castors Polyurethane / Cast Iron Ball Bearing Bore Wheel
Extra Heavy duty Polyurethane tyred wheel on cast iron center with ball bearings.
The bracket is finished in BZP and is corrosion resistant
Overall Height : 240mm
Wheel Size : 200mm
Tread Width : 50mm
Wheel Type : Polyurethane Tyre On Cast Iron Centre Wheel with Ball Bearing Bore
Load Rating : 800kg
Fixing Plate Size : 137 x 105mm
Bolting Centre : 105 x 80/75mm
Bolt Size : 10mm (M10)
Swivel Radius : 155mm (Swivel)
Swivel Radius : 161mm (Brake)
