200mm GDH Series Rubber/Cast Iron (600kg)
From £36.11
( £43.33 Including VAT at 20% )
Ref: ( £43.33 Including VAT at 20% )
200GDH-RTBJ
Castor Type:
Add to Cart
You may also be interested in:
Description

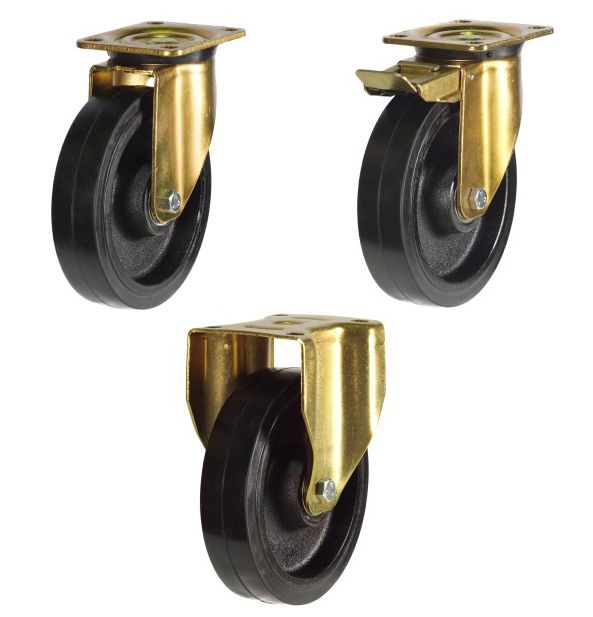

200mm Extra Heavy PRESSED STEEL Swivel, Fixed & Total Stop Swivel/Brake Castors Rubber Tyre/Cast Iron Centre Ball Bearing Bore.
Ideal For Heavy Dynamic Loads and Towing applications or instances where shock loading is an issue
Extra Heavy duty Pressed Steel bracket with swivel ball bearings.
Elastic Rubber Tyre / Cast Iron Centre Fitted With Sealed Ball Bearings
The bracket is finished in BZP and is corrosion resistant
Overall Height : 240mm
Wheel Size : 200mm
Tread Width : 50mm
Wheel Type : Rubber Tyre/Cast Iron Wheel with Ball Bearing Bore
Load Rating : 600kg
Fixing Plate Size : 137mm x 105mm
Bolting Centre : 105 x 80/75mm
Bolt Size : 10mm (M10)
Swivel Radius : 155mm (SWIVEL CASTOR)
Swivel Radius : 161mm (BRAKED CASTOR)
Ideal For Heavy Dynamic Loads and Towing applications or instances where shock loading is an issue
Extra Heavy duty Pressed Steel bracket with swivel ball bearings.
Elastic Rubber Tyre / Cast Iron Centre Fitted With Sealed Ball Bearings
The bracket is finished in BZP and is corrosion resistant
Overall Height : 240mm
Wheel Size : 200mm
Tread Width : 50mm
Wheel Type : Rubber Tyre/Cast Iron Wheel with Ball Bearing Bore
Load Rating : 600kg
Fixing Plate Size : 137mm x 105mm
Bolting Centre : 105 x 80/75mm
Bolt Size : 10mm (M10)
Swivel Radius : 155mm (SWIVEL CASTOR)
Swivel Radius : 161mm (BRAKED CASTOR)
