150mm GDH Series Nylon (700Kg)
From £31.06
( £37.27 Including VAT at 20% )
Ref: ( £37.27 Including VAT at 20% )
150GDH-NYBJ
Castor Type:
Add to Cart
Description

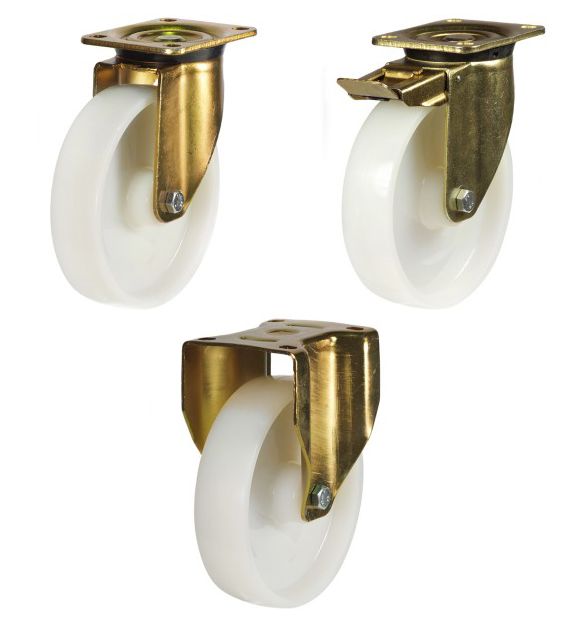

150mm Extra Heavy PRESSED STEEL Swivel, Fixed & Total Stop Swivel/Brake Castors with Cast Nylon Wheel Ball Bearing Bore.
Ideal For Heavy Dynamic Loads and Towing applications or instances where shock loading is an issue
150mm Swivel/Brake Castor with 4 bolt fixing plate
Extra Heavy duty Pressed Steel Bracket with swivel ball bearings and Total Stop Brake.
Extra Heavy Duty Cast Nylon Wheel With Ball Bearings.
The bracket is finished in Passivated Zinc and is corrosion resistant
Overall Height : 194mm
Wheel Size : 150mm
Tread Width : 45mm
Wheel Type : Cast Nylon Wheel with Ball Bearings
Load Rating : 700kg
Fixing Plate Size : 135 x 110mm
Bolting Centre : 105 x 80mm
Bolt Size : 12mm (M12)
Swivel Radius : 130mm (Swivel)
Swivel Radius : 155mm (Brake)
Ideal For Heavy Dynamic Loads and Towing applications or instances where shock loading is an issue
150mm Swivel/Brake Castor with 4 bolt fixing plate
Extra Heavy duty Pressed Steel Bracket with swivel ball bearings and Total Stop Brake.
Extra Heavy Duty Cast Nylon Wheel With Ball Bearings.
The bracket is finished in Passivated Zinc and is corrosion resistant
Overall Height : 194mm
Wheel Size : 150mm
Tread Width : 45mm
Wheel Type : Cast Nylon Wheel with Ball Bearings
Load Rating : 700kg
Fixing Plate Size : 135 x 110mm
Bolting Centre : 105 x 80mm
Bolt Size : 12mm (M12)
Swivel Radius : 130mm (Swivel)
Swivel Radius : 155mm (Brake)
