200mm DNGR Twin Wheel Series Cast Iron (1500kg)
From £103.62
( £124.34 Including VAT at 20% )
Ref: ( £124.34 Including VAT at 20% )
200DNGR-CIBJ
Castor Type:
Add to Cart
Description

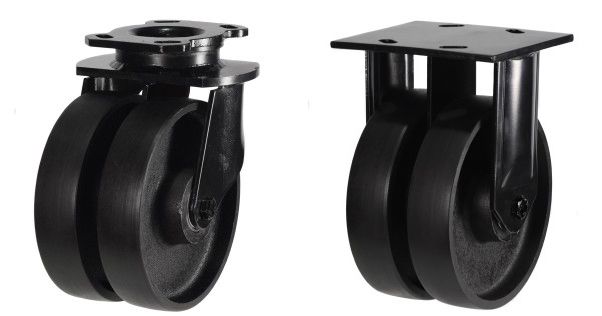

200mm Extra Heavy Duty Twin Cast Iron Wheel Castors.
200 mm Swivel Fixed & Braked Castors Double Wheel with 4 bolt fixing plate
Extra Heavy duty fabricated bracket with ball bearing swivel head.
Extra Heavy duty Cast Iron Wheel with ball bearings X2
The bracket is finished black powder coat.
Overall Height : 252mm
Wheel Size : 200mm X2
Tread Width : 50mm X2 102mm Total
Wheel Type : Cast Iron Wheel with Ball Bearings
Load Rating : 1500kg
Fixing Plate Size : 149 x 110mm (Swivel)
Fixing Plate Size : 175 x 150 (Fixed)
Bolting Centres : 105 x 80mm
Bolt Size : 12mm (M12)
Swivel Radius : 154mm
