200mm GDH Series Cast Iron (800kg)

From £46.43
( £55.72 Including VAT at 20% )

Ref:

200GDH-CIBJ

Castor Type:

Quantity:

Add to Cart

You may also be interested in:

M12 X 30mm Bolt, Nylock & Washer (SET of 4)£2.40

M12 X 30mm Bolt, Nylock & Washer (SET of 16)£9.60

Fitting Plate 105X80 Bolt Center£5.76 x 0

200mm Cast Iron 20mm Ball Bearing Wheel (1100Kg)£45.40 x 0

DL-GDH SERIES DIRECTIONAL LOCK£21.46

Description

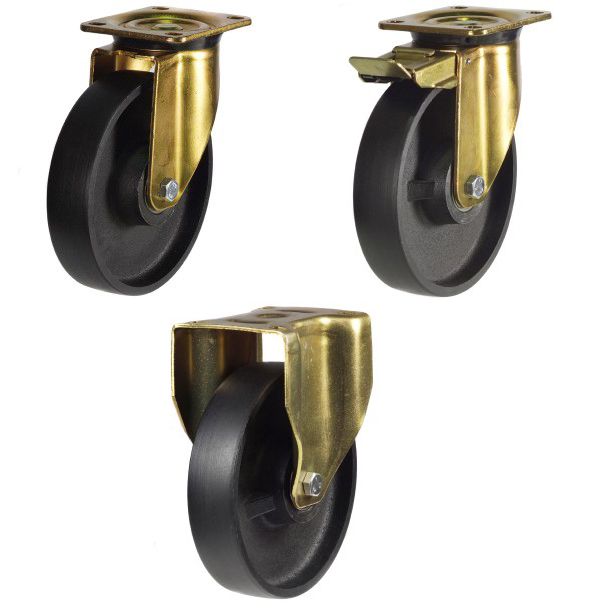

200mm Extra Heavy PRESSED STEEL Swivel, Fixed & Total Stop Swivel/Brake Castors Cast Iron Ball Bearing Bore.

(DELIVERY 3-5 DAYS ON THIS ITEM)

Heavy Duty Swivel Fixed & Braked Castors with Cast Iron Wheels Ideal when a hard tread is needed and is ideal for all heavy industrial use.
Extra Heavy Duty Pressed Steel Castor

Extra Heavy duty Pressed Steel bracket with swivel ball bearings.
Cast Iron Centre Wheel With Sealed Ball Bearings
The bracket is finished Yellow Passivated and is corrosion resistant

Overall Height : 239mm
Wheel Size : 200mm
Tread Width : 45mm
Wheel Type : Cast Iron Wheel with Ball Bearings
Load Rating : 800kg
Fixing Plate Size : 135mm x 110mm
Bolting Centre : 105 x 80mm
Bolt Size : 12mm (M12)
Swivel Radius : 155mm (SWIVEL CASTOR)
Swivel Radius : 161mm (BRAKED CASTOR)
