200mm GDH Series Nylon (800Kg)

200mm GDH Series Nylon (800Kg)

From £38.67
( £46.40 Including VAT at 20% )
Ref:

200GDH-NYBJ

Castor Type:
Add to Cart
Description

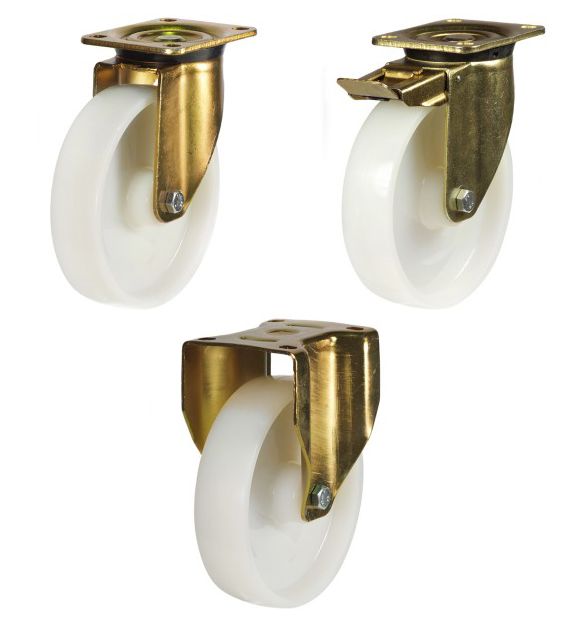

200mm Extra Heavy  PRESSED STEEL  Swivel, Fixed & Total Stop Swivel/Brake Castors with Cast Nylon Wheel

Ideal For Heavy Dynamic Loads and Towing applications or instances where shock loading is an issue

200mm Swivel, Swivel with Brake & Fixed Castors with 4 bolt fixing plate
Extra Heavy duty Pressed Steel Bracket with swivel ball bearings and Total Stop Brake.
Extra Heavy Duty Cast Nylon Wheel With Ball Bearings.
The bracket is finished Yellow Passivated and is corrosion resistant

Overall Height : 239mm
Wheel Size : 200mm
Tread Width : 50mm
Wheel Type : Cast Nylon Wheel with Ball Bearings
Load Rating : 800kg
Fixing Plate Size : 135 x 110mm
Bolting Centre : 105 x 80mm
Bolt Size : 12mm (M12)
Swivel Radius : 155mm (Swivel)
Swivel Radius : 161mm (Brake)
