High Temp 150mm Phenolic Wheel (400kg - 300°C)
From £48.36
( £58.03 Including VAT at 20% )
Ref: ( £58.03 Including VAT at 20% )
150LMH-WAN-HT-300
Castor Type:
Add to Cart
You may also be interested in:
Description

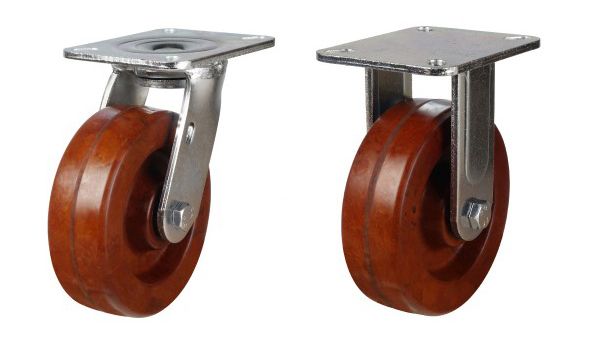

150mm Heavy Duty Swivel & Fixed Castors With High Temp Phenolic Wheel
When using high temperature / heat resistant castors & wheels please note the temperature range stated is suitable for the ambient temperature of ovens & autoclaves. Consideration therefore should be given to the placement of the castors & wheels in relation to the heat source such as naked flame or inlet vents where the initial temperature will be considerably higher.
Overall Height : 190mm
Wheel Size : 150mm
Tread Width : 50mm
Wheel Type : High Temp Phenolic with Steel Roller Bearing Bore
Load Rating : 400kg
Fixing Plate Size : 135 x 110mm
Bolting Centres : 105 x 80mm
Bolt Size : 10mm (M10)
Swivel Radius : 120mm Temperature Rating : 300 Degrees ‘C
When using high temperature / heat resistant castors & wheels please note the temperature range stated is suitable for the ambient temperature of ovens & autoclaves. Consideration therefore should be given to the placement of the castors & wheels in relation to the heat source such as naked flame or inlet vents where the initial temperature will be considerably higher.
Overall Height : 190mm
Wheel Size : 150mm
Tread Width : 50mm
Wheel Type : High Temp Phenolic with Steel Roller Bearing Bore
Load Rating : 400kg
Fixing Plate Size : 135 x 110mm
Bolting Centres : 105 x 80mm
Bolt Size : 10mm (M10)
Swivel Radius : 120mm Temperature Rating : 300 Degrees ‘C
