200mm UHD Polyurethane on Cast Iron (1400Kg Load)
From £224.67
( £269.60 Including VAT at 20% )
Ref: ( £269.60 Including VAT at 20% )
200UHDPTBJ
Castor Type:
Add to Cart
Description

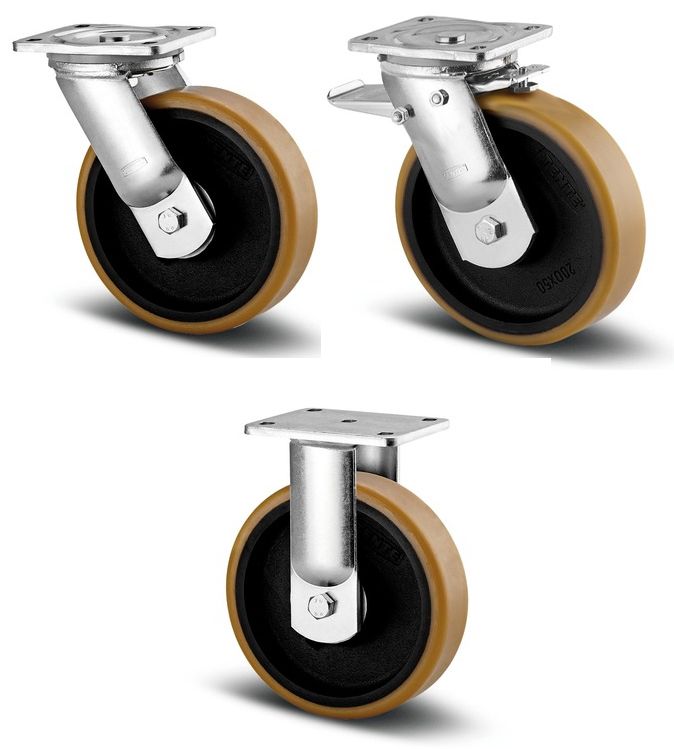

200mm Ultra Heavy Duty Swivel & Braked Castors with Polyurethane on Cast Iron Centre Ball Bearing Bore 1400kg Load
ULTRA HEAVY DUTY CASTOR
200mm Ultra Heavy Duty Swivel, Swivel With Total Stop Brake & fixed Castor options with 4 bolt fixing plate.
Ultra Heavy Duty Fabricated Bracket
Ultra Heavy Duty Polyurethane/Cast Iron Wheel with Ball Bearing Bore
The Bracket is Finished in BZP and is Corrosion resistant
Overall Height : 255mm
Wheel Size : 200mm
Tread Width : 80mm
Wheel Type : Cast Nylon with Ball Bearings
Load Rating Dynamic: 1400kg
Fixing Plate Size : 175 x 140
Bolting Centre : 140 x 105mm
Bolt Size : 15mm (M14 Fixing Bolts)
Swivel Radius : 182mm (Braked Castor)
Swivel Radius : 166mm (Swivel Castor)
